Galvanized Iron Steel

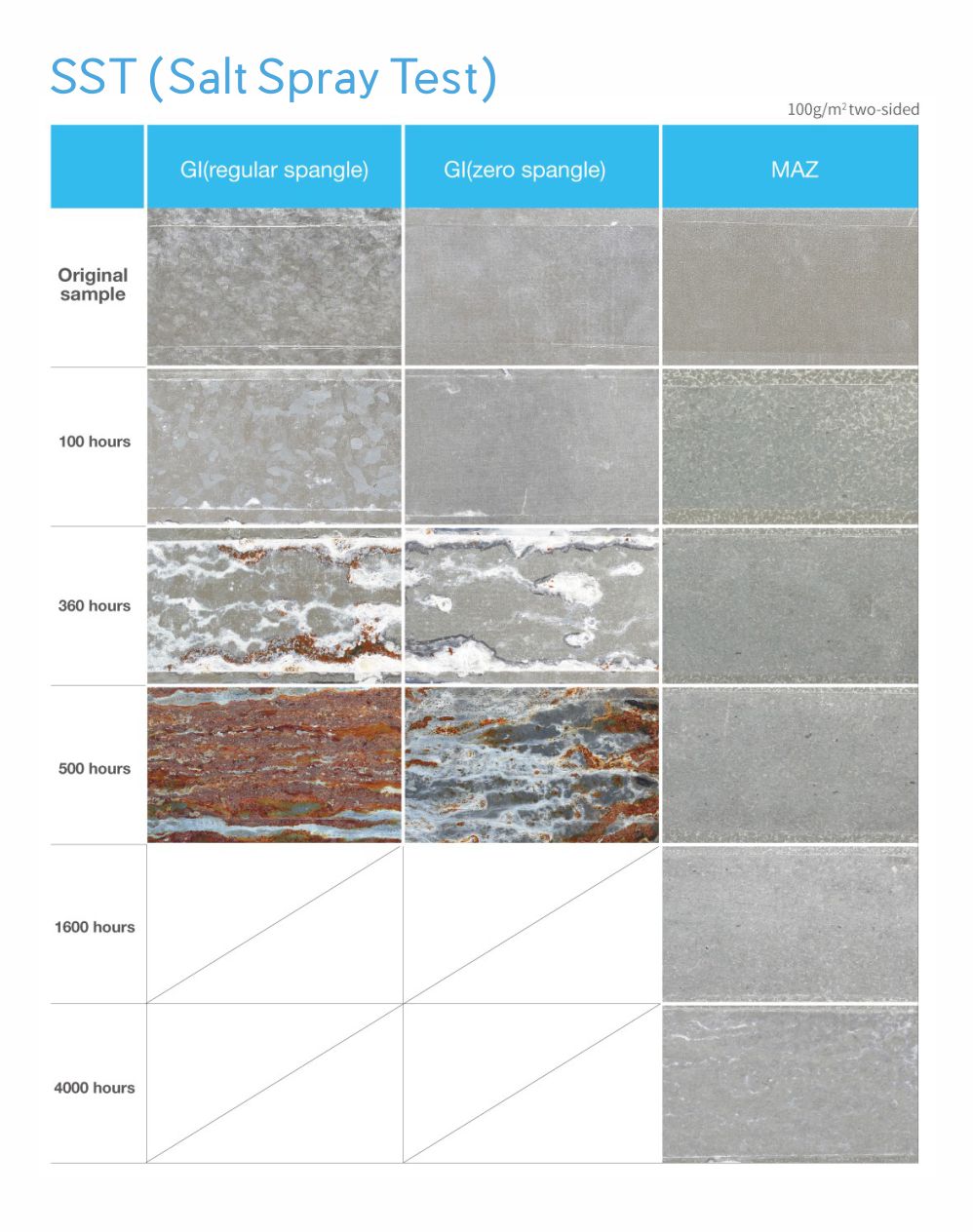

The Magnesium-Aluminium-Zinc (MAZ) coated products have superior corrosion resistance and Scratch resistance. By conducted Salt Spray Test (SST) on 100g of MAZ coated plate and 100g of galvanized plate at the same period, It was found that MAZ do not rust after 4000 hours on Salt Spray Test (SST).
In this test, proof that our MAZ has 10 times better in corrosion resistance compare to normal GI.
This material make from Magnesium-Alu-Zinc coating, with higher corrosion resistance, also anti-corrosion mechanism at cutting edge face and welding end.
Mean once substrate of cutting end face and welded end is exposed, the plating ingredient around the cutting end face and welded end will melt out and form a dense protection film, and so on which will cover the cutting edge end face and welded end.
Our product strong from :
- 10 times better in corrosion resistance compare to normal GI
- 6-8 time better in strength
- Quality assurance by PICC Property and Casualty Company Limited
- Price almost same as normal GI

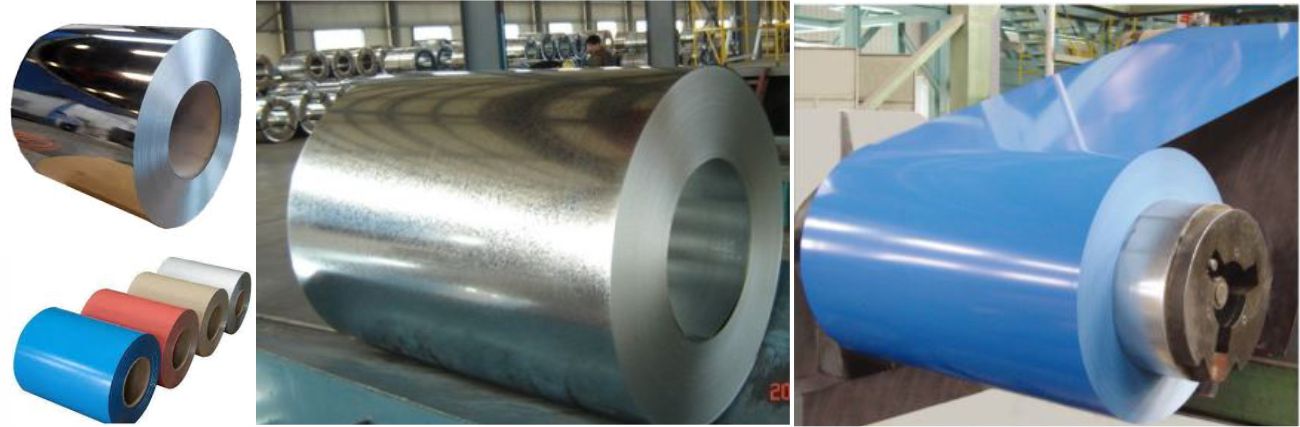

Cold Rolled Sheet
Cold Rolled Sheet
- Executive standard : YB/T50509-2005
- Thickness : 0.12mm – 2.0mm
- Width : 1000mm – 1300mm
- Internal Diameter : 610mm
- Diameter : max 1900mm
- Coil weight : max 25 tons
Galvanized Sheet
Galvanized Sheet
- Executive standard : Q/320623AEE 01-2016 (or according to customer’s requirement)
- Thickness : 0.2mm - 1.5mm Width : 1000mm x 1250mm
- Thick plate : 0.2mm – 5.0mm Width : 1000mm x 1250mm
- Coil Weight : max 25 tons
- Tensile strength : 270 – 420N/mm
- Zinc coating : 60 – 275g/m2
Pre-painted Steel sheet
Pre-painted Steel sheet
- Executive standard : Q/320623ACQ 01-2016
- Thickness : 0.15mm - 1.2mm Width : 800mm x 1250mm
- Color : Sea blue, ash grey, crimson, pea green, ivory tint (or according to customer’s requirement)
- Coating option : polyester coating, fluorocarbon coating and silicon modified coating.
- Thickness of paint coating : 10 – 40 micro meter (or according to customer’s requirement)
Decorative series of steel sheet
Decorative series of steel sheet
- Executive standard : Q/320623ACQ 01-2016
- Thickness : 0.15mm – 2.0mm
- Width : 800mm – 1300mm
- Color : reference sample of our company (According to customer’s requirement)
- Main technical indicators : Coating thickness 10 – 40 micro meter
- Aleatoric aasemble within four colors (according to customer’s requirement)
